Rubber Track Undercarriage

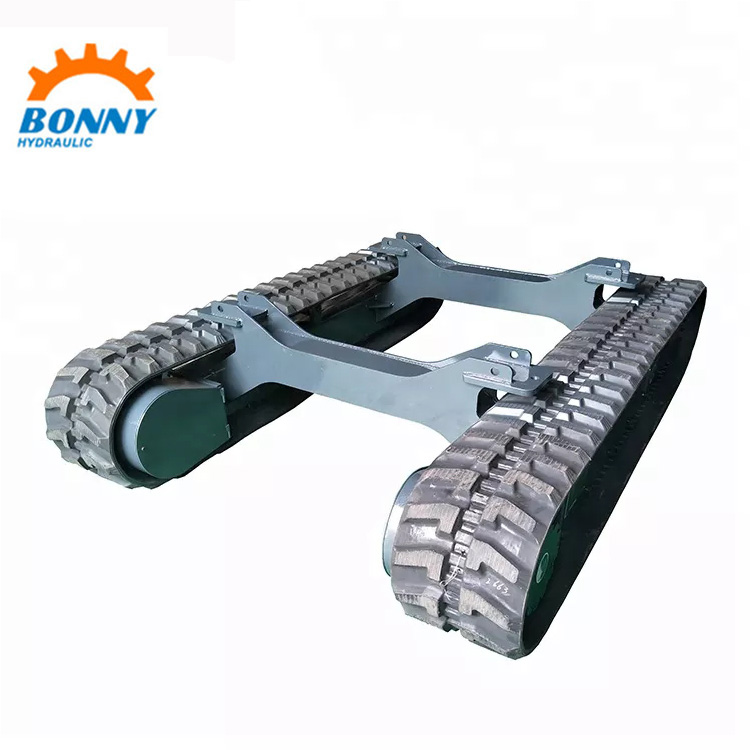

A rubber track undercarriage refers to the system of components that support and propel vehicles or equipment that use rubber tracks instead of traditional wheels or tires. It is commonly found in construction machinery, agricultural equipment, utility vehicles, and other applications that require enhanced traction, flotation, and maneuverability over challenging terrain. The rubber track undercarriage consists of several key components:

1. Rubber Tracks: Rubber tracks are the primary component of the undercarriage system. They are made of reinforced rubber with embedded metal or composite reinforcement cords to provide strength and flexibility. The rubber tracks offer excellent traction and flotation, allowing vehicles to operate on various surfaces, including soft or uneven terrain.

2. Track Rollers: Track rollers are the wheels that guide and support the rubber tracks. They are usually mounted on the undercarriage frame and evenly distribute the weight of the vehicle or equipment. The track rollers help to maintain proper tension and alignment of the rubber tracks, ensuring smooth operation and extended track life.

3. Idler Wheels: Idler wheels are positioned at the front or rear of the undercarriage and play a crucial role in maintaining proper track tension. They apply tension to the rubber tracks, ensuring they remain properly tensioned and prevent excessive sagging or loosening during operation.

4. Drive Sprockets: Drive sprockets are located at the ends of the undercarriage and are responsible for driving the rubber tracks. They engage with the lugs on the inside of the rubber tracks, propelling the vehicle or equipment forward or backward when rotated. Drive sprockets are typically powered by hydraulic motors or other means of mechanical power transmission.

5. Support Rollers: Support rollers are additional wheels positioned between the track rollers and idler wheels. They help to distribute the weight of the vehicle or equipment across the undercarriage, providing stability and reducing stress on the rubber tracks. Support rollers also assist in guiding the tracks and maintaining proper track tension.

6. Tensioning System: A tensioning system is incorporated into the rubber track undercarriage to maintain optimal track tension. It typically consists of adjustable components, such as tensioning springs or hydraulic cylinders, which can be adjusted to ensure proper track tension based on operating conditions and track wear.

7. Undercarriage Frame: The undercarriage frame serves as the structural support for all the components of the rubber track undercarriage. It provides the framework to which the track rollers, idler wheels, support rollers, and other components are mounted.

Rubber track undercarriages offer several advantages over wheeled systems, including improved traction, reduced ground pressure, enhanced stability, and the ability to traverse rough or soft terrain more effectively. They are commonly used in applications where low ground disturbance, maneuverability, and traction are critical, such as in construction, agriculture, forestry, and landscaping.

When selecting a rubber track undercarriage, considerations should include the specific requirements of the vehicle or equipment, the intended application, load capacity, track durability, and compatibility with existing machinery or attachments. Proper maintenance and periodic inspection of the rubber tracks and undercarriage components are essential to ensure optimal performance and longevity.
